This is a fully
automatic high-speed Slotted rubber stopper inspection machine. overall body of the
machine is made from stainless steel and upper portion of the machine is
covered by glass cabinet which prevent dust to enter into the machine.in this
machine operator fills material to the hopper. material then elevated to rotary
vibrator through elevator. rotary vibrator feeds material to feeder conveyor. then
rubber stopper is faded to rotary. perfect timing operation is done through
pick up roller mechanism. which gives perfect timing to capture image. 4

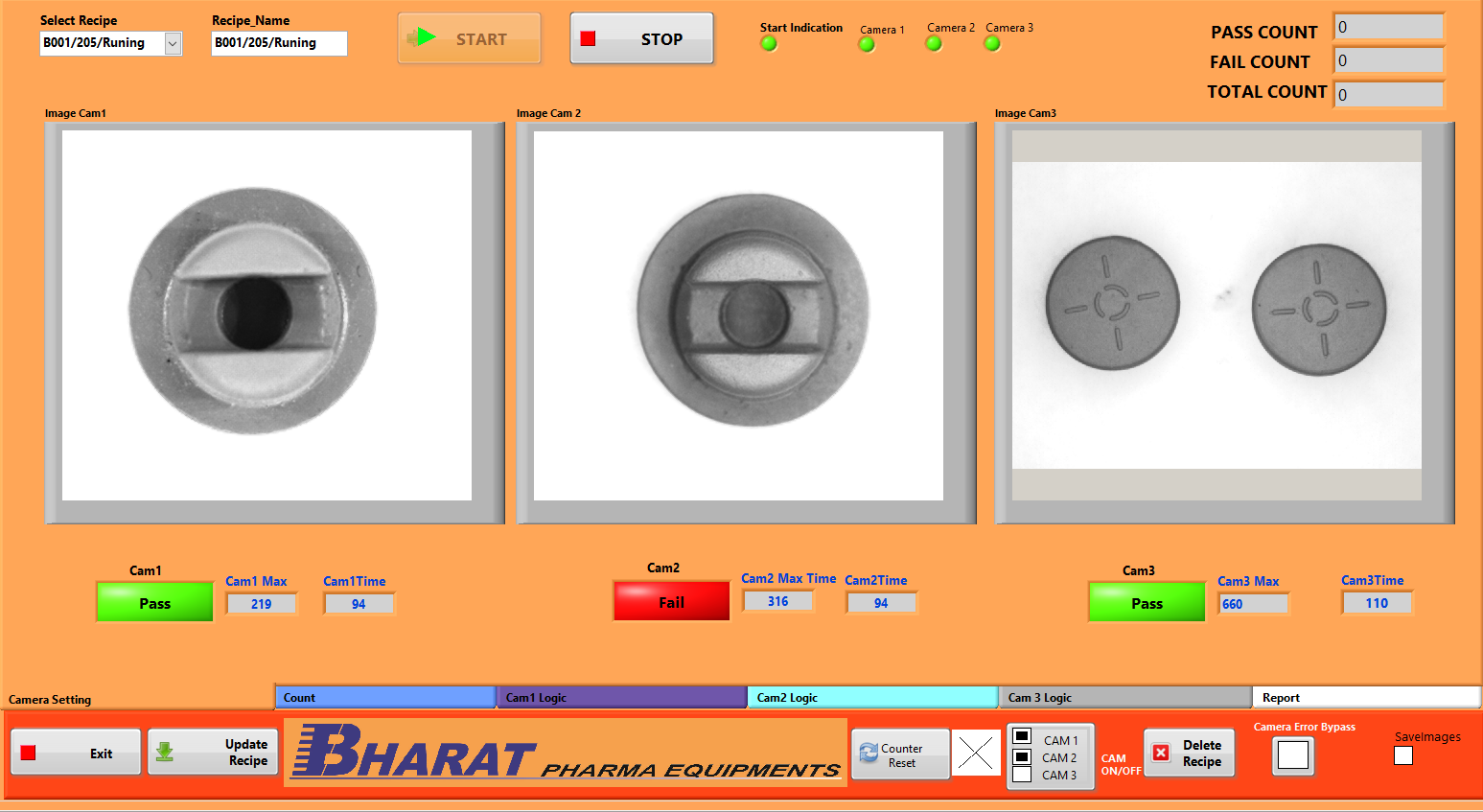

cameras are situated on rotary to find defects in rubber stopper. work is done
by 6 high definition cameras in which 4 of them which are situated on rotary
inspects front side of the stopper. other 2 cameras inspect bottom side of the
stopper. defects cover by camera is horizontal flash, blackspot, white spot and
cut respectively. now, stopper then move forward to rejection station, where
rejected stopper rejects through air nozzle. accepted pieces will go to good
piece crate for further process. all this process is done by high speed 1000
ppm state of the art mechanism.
